industrial biogas desulfurizer and dehydrator tower filter facility

FOB Reference Price:Get Latest Price
US $1,000-4,000 / Sets | 1 Set/Sets biogas purify (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
PUXIN
Model Number:
PXDS-250L
Place of Origin:
Guangdong, China (Mainland)
Application:
Industry Fuel
Appearance:
brown cylindrical bar
Ferric Oxide content:
25% - 33%
Intensity:
≥50.0N/cm(Lateral pressure)
Porosity:
50 - 60%
Classification:
Chemical Auxiliary Agent
MF:
Fe2O3.H2O
Usage:
biogas filter facility
Dimensions:
dia 5 - 6 *5 - 30mm
Bed resistance:
small
Sulfur removal:
high
Supply Ability
Supply Ability:
100 Set/Sets per Month biogas filter
Packaging & Delivery
Packaging Details
packed in Cartons or pallet
Port
Shenzhen
Lead Time :
about 3 weeks after receiving payments





Industrial biogas desulfurizer and dehydrator tower filter facility for large scale biogas plant



Product Description








250L 1.png





In purifying performance and operation, the desulfurization equipment is with

1), reasonable structure

2), small bed resistance

3), high sulfur removal

4), easy operation

5), high sulfur capacity penetration

6), strong adaptability of installation site
7), no secondary pollution

8), simple and quick installation etc.

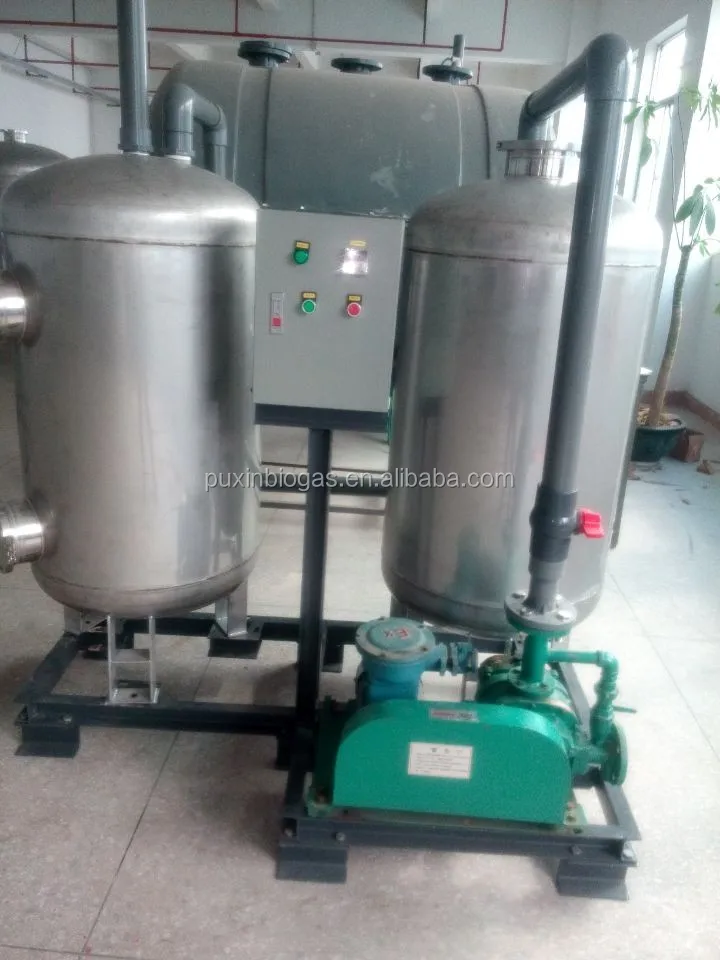

BIOGAS PURIFICATION SYSTEM1.jpg





Biogas desulfurization equipment is mainly to remove H2S and impurities in biogas. Fill desulfurizer in desulfurization equipment to remove H2S.







Desulfurizer in the desulfurization equipment, the components are mainly Ferric Oxide, and add other efficient purifying material from the processing of additional accelerator. Even in no oxygen and no ammonia environment, it also can remove H2S precisely. It also has effect on removal of thiols organic sulfur and most of the nitrogen oxides.

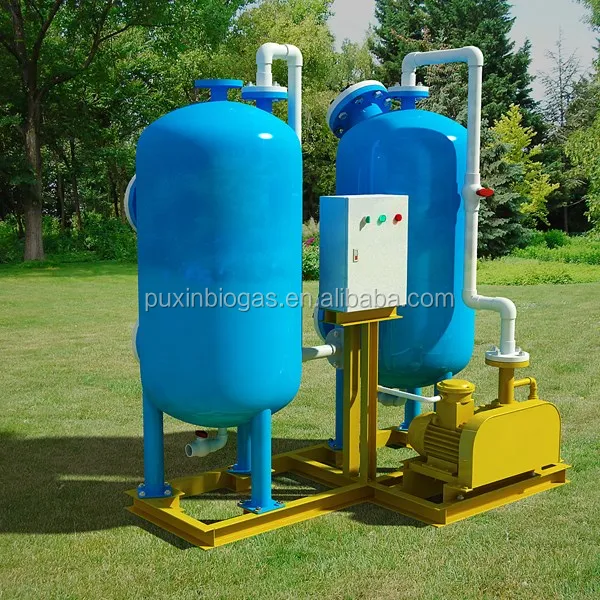

BIOGAS PURIFICATION SYSTEM.jpg

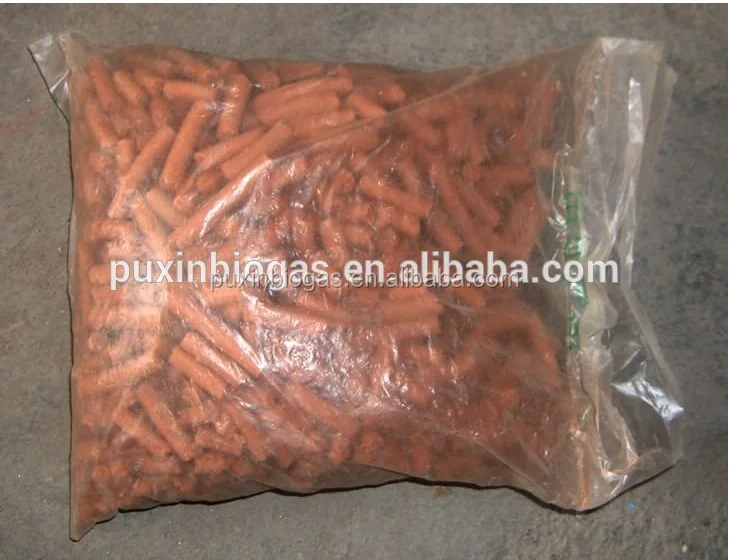

Main physical and chemical properties of desulfurizer:



chemical properties of desulfurizer.png



AppearanceBrown cylindrical bar
DimensionsDia5 to 6 Len. 5 to 30mm
Ferric Oxide content25 to 33 percent
Density0.85kg per Litre
Porosity50 to 60 percent
IntensityNot less than 50.0N per cm(Lateral pressure)



2. Main reaction principle of desulfurization



(1) Fe2O3.H2O+3H2S=Fe2S3.H2O+3H2O
(2) Fe2O3.H2O+3H2S=2FeS+S+4H2O
When desulfurizer is alkaline, reaction is according to formula (1) to right; when desulfurizer is acid, reaction is according to formula (2).



If H2S gas content in the outlet gas of the desulfurization equipment is more than the required value, desulfurizer should be replaced to ensure normal use of desulfurizer and enabling normal operation of the desulfurization equipment.





Desulfurizer-07



Pay attention to



Notice:
1. Do remove the crumb firstly, after pouring out the material of desulphurizer, just remain the
granular material.
2. Do not put the material on the plastic or wooden or inflammable products when regenerating.
3. Do not put the crumb material of desulfurizer back to desulphurizer





The following is desulpfurizer’s working principle:


When biogas comes out from plant, there are some steams which can be departed through cooling.
The principle of desulfurization:
Fe2O3.H2O+3H2S=Fe2S3.H2O+3H2O


after used some times, sufficiency of desulfurization would be decrease. Then we should replace
desulfurization or regenerate.
The principle of regeneration: 2Fe2S3.H2O+3O2=2Fe2O3.H2O+6S
